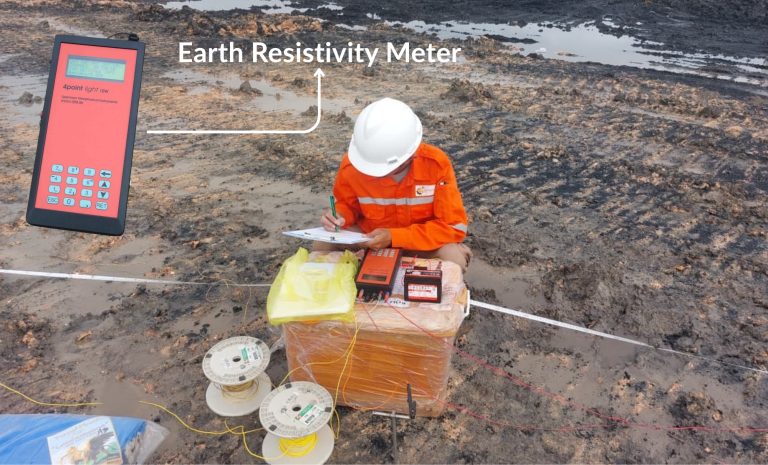

Earth Resistivity Meter: High-Precision Subsurface Electrical Measurement
Therefore, an Earth Resistivity Meter is a vital geophysical instrument used to measure the electrical resistance of soil, rock, and subsurface materials. Moreover, the measurements are widely applied in groundwater exploration, environmental monitoring, geological investigations, mining development, infrastructure design, and geotechnical studies. As a result, engineers can make accurate decisions before executing major field operations.
Furthermore, this instrument provides non-destructive testing and delivers fast, reliable, and accurate mapping of underground conditions. Consequently, it has become a preferred tool for engineers, hydrogeologists, and geophysicists in professional subsurface investigations.
How the Earth Resistivity Meter Works
First, the device applies electrical current into the ground through electrodes and measures the resulting voltage. Next, the system converts these measurements into apparent resistivity values, which indicate variations in subsurface properties. Therefore, the interpretation of these values helps identify material contrasts underground.
For example, different soils, rock types, groundwater zones, and voids show different resistivity responses. As a result, the Earth Resistivity Meter can be used to:
Identify sand, clay, bedrock, and fractured zones
Detect groundwater aquifers
Locate contamination plumes
Map geological structures
Support engineering site characterization
Common Applications
1. Groundwater Exploration
Moreover, the Earth Resistivity Meter is commonly used to determine aquifer depth, thickness, and potential productivity. Therefore, it improves well placement accuracy and reduces drilling uncertainty.
2. Environmental Assessment
Resistivity surveys support environmental studies by mapping:
Contaminated soil zones
Leachate movement
Moisture variation
Industrial waste impact
Consequently, the assessment results help guide remediation plans and environmental decision-making.
3. Mining and Mineral Prospecting
In mining operations, the instrument assists with:
Detecting mineral bodies
Identifying fracture networks
Planning drilling locations
Reducing exploration risk
Furthermore, it provides essential data before costly extraction programs begin.
4. Geotechnical and Civil Engineering
Engineers also rely on this instrument for:
Foundation condition evaluation
Bedrock depth mapping
Locating weak soil layers
Understanding subsurface stratification
As a result, construction planning becomes more efficient, economical, and safer.
Advantages of Using an Earth Resistivity Meter
The instrument offers several major advantages, including:
Fast data acquisition
Non-destructive field investigation
Suitable for a wide range of terrains
High resolution and measurement accuracy
Cost-effective coverage over large areas
Reduced reliance on trial drilling
Additionally, advanced processing software allows results to be displayed in 1D, 2D, and 3D formats, enabling deeper interpretation.
Why It Matters for Engineering and Exploration
Subsurface uncertainty is one of the biggest challenges in civil engineering, mining, water exploration, and infrastructure development. However, using an Earth Resistivity Meter:
Reduces design and exploration risks
Improves planning accuracy
Saves project cost and time
Enhances geological understanding before investment
To conclude, the Earth Resistivity Meter enables data-based decision-making that leads to safer, more efficient, and more successful project execution.
